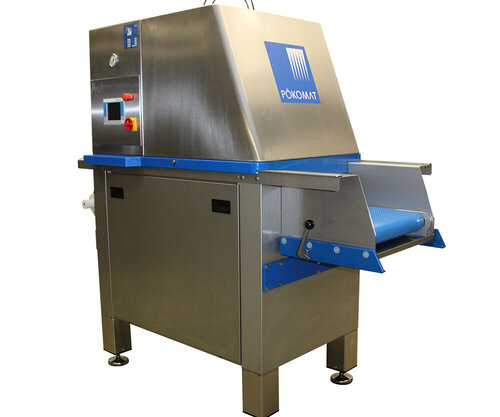

Pökomat P132
The precise and reliable industrial multi-needle-injector Pökomat P 132/500 allows you to profitably produce consistently cured products. The tried and tested Pökomat-concept gives you all the technical and economic advantages. The conveyor movement is designed to give an even needle pattern no matter what adjustments are chosen. The Pökomat P 132/500 has the advantage that the pump and all piping is located underneath the conveyor belt. The housing is completely sealed from the upper zone. This design allows the use of different pumping systems. Maintenance is hassle free as the whole unit is built on a removable sliding carriage.
The next features are particulary for the P132:
• The compressing and elastic force can be precisely adjusted
• With 11 individually adjustable brine valves it can be regulated whether the brine is injected upon penetration or with a delay
• All needles are equipped with springs
• Easy and fast cleaning through few clear handles
• Without tools removable conveyor belt for easy cleaning
Details
Pump
diaphragm air pressure pump
Injection pressure
3 bar
Passage height
150 / 110 / 70 mm
Passage width
500 mm
Strokes per minute
20 - 80
Conveyor belt
Plastic grid belt
Conveyor belt advance
19 mm and 38 mm
Material
Stainless steel and food-suited plastics
Power
2.2 kW
Voltage
400 V / 50 Hz
Length
1930 mm
Width
850 mm
Height
1940 mm
Weight
600 Kg
